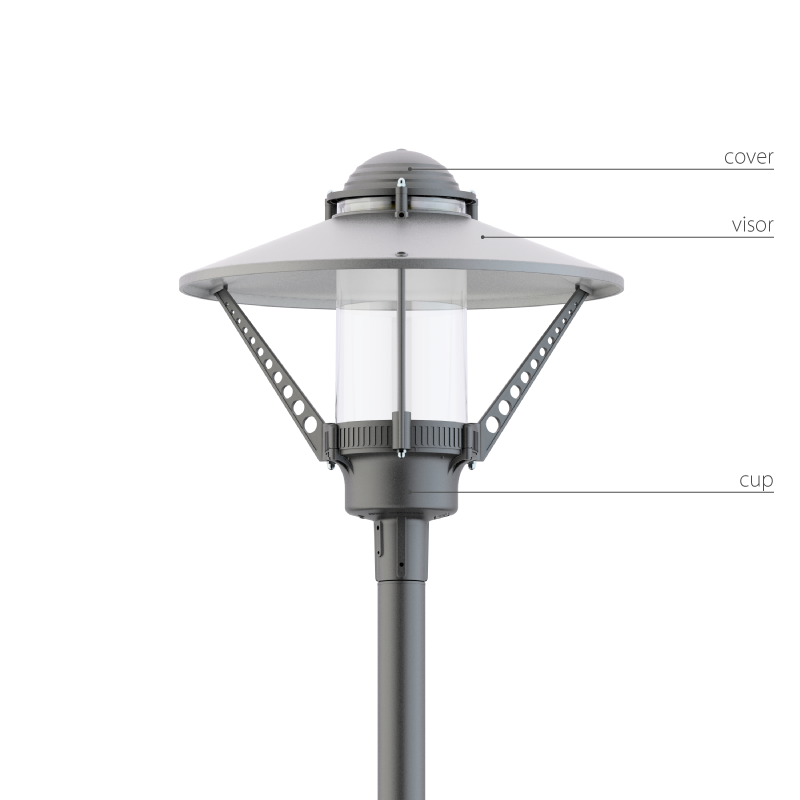

Alfa 8A
  • Length: 700 mm
  • Width: 700 mm
  • Height: 680 mm
  • Weight without gear: 6,8 kg
  • Wind surface: 1815 cm2
  • Coupling: 60 mm
  •
  • Gear: Up to 150W · View Optics
  • Tension and Frequency: 220-240V 50/60Hz

Unique Characteristics

Immune to corrosion Anti-electrocution Much more than anti-vandal 10 year warranty
  • Immune to corrosion
  • Anti-electrocution
  • Much more than anti-vandal
  • 10 year warranty
  • More

Exclusive Technology

ATP materials. VesselTech Technology® Modular Construction
  • ATP materials.
  • VesselTech Technology®
  • Modular Construction
  • More

Designed To Last

IP66+ Integral sealing Resistant to extreme climates Sealing gasket Integrated valve
  • IP66+ Integral sealing
  • Resistant to extreme climates
  • Sealing gasket
  • Integrated valve
  • More

Maximun Security

Much more than class II Self-extinguishing
  • Much more than class II
  • Self-extinguishing
  • More

Minimum Maintenance

No need to paint IP68 connector Ultralight
  • No need to paint
  • IP68 connector
  • Ultralight
  • More

Eco Lighting

100% Recyclable Without Paint Integrated carbon
  • 100% Recyclable
  • Without Paint
  • Integrated carbon
  • More

Energy Saving

Energy savings (>50%) Low loss equipment
  • Energy savings (>50%)
  • Low loss equipment
  • More

Intelligent Lighting

Presence detector Flow regulation Advanced Telemanagement
  • Presence detector
  • Flow regulation
  • Advanced Telemanagement
  • More

Unique Characteristics

Immune to corrosion, Anti-electrocution, Anti-vandal and 10 year warranty.

Immune to corrosion



Forget about corrosion.



Prime materials not susceptible to corrosion.



Ideal for lighting up coastal areas, marinas and promenades.

Anti-electrocution



Insulated materials that don’t conduct electricity eliminating the danger of electrocution upon contact with the luminaire.



Imperative in public lighting of parks and gardens to ensure electric security for pets and pedestrians.


Much more than anti-vandal



IK10+: Urban furniture and public lighting capable of surpassing impact tests of more than 50 jules.



More than double the normal IK EN 50102.

10 year warranty



The best warranty in the industry.



Since 1969.



Successfully tested in tropical climates.


Close

Exclusive Technology

Latest generation of ATP polymeric materials, VesselTech Technology® and Modular Construction.

ATP materials.



Latest generation of ATP polymeric materials.



Our exclusive formula of polymers gives way to T5 and S7 ATP materials.



Materials especially designed to satisfy the maximum resistance requirements to vandalism and external agents.

VesselTech Technology®



One-piece body to obtain maximum solidity with total tightness.



System and design internationally patented.


Modular Construction



Multiple interchangeable pieces that allow different design combinations.



Our customers can suggest new combinations to make their own designs.

Close

Designed To Last

Hermetic, Resistant to extreme climates, Continuous robotized sealing gasket and Atmospheric pressure control valve.

IP66+ Integral sealing



Various devices assure the hermeticity of the luminaire in whichever situation.



This high IP grade offers protection to all the elements in the interior of the luminaire.





Resistant to extreme climates



Prepared to resist the most severe climate conditions.



High recommended for public lighting in the coast, marinas, ports and close to sea promenades.


Sealing gasket



Continuous robotized sealing gasket.



Maximum protection against water and dust without an attachment.



Total protection of all the elements inside the luminaire.

Integrated valve



Atmospheric pressure control valve.



Added textile technology to depressurize luminaires on or off.



It aloud the opening of the luminaire avoiding the vacuum produced by the difference between pressures.


Close

Maximun Security

Class II + by nature; No possibility of electrocution and self-extinguishing.

Much more than class II



Class II+: On top of the double insulation security measure they are constructed with our S7 and T5 materials.



Non-conducting materials that creates electric safe public lighting.

Self-extinguishing



Thanks to our latest generation of materials fires are extinguished and are no longer capable of spreading.


Close

Minimum Maintenance

No painting, Plug & Play and Ultralight.

No need to paint



Forget about maintenance costs.



Public lighting and urban furniture products unalterable by weather conditions.

IP68 connector



Connect and done.



Supplied with the Tubular IP68 Connector® for fast and safe public lighting installations.


Ultralight



Easing manipulation during installation.



Public lighting luminaire built with high resistance ultralight materials.

Close

Eco Lighting

100% recyclable, no paint (Color Black) and Integrated Carbon (Black Color).

100% Recyclable



The most ecological public lighting in the world.



Constructed with 100% recyclable materials of economic, ecological, and sustainable transformation.

Without Paint



Eliminating painting in production achieves total harmony between the public lighting and the environment.



Meet the most ecological street lighting and urban furniture products.


Integrated carbon



Tinted in a carbon particle base that avoids the degradation of the base color in whichever circumstance.



Durability tested in tropical climates.

Close

Energy Saving

Optimized energy saving equipment and low losses.

Energy savings (>50%)



Substituting inefficient outdoor lighting will cut the electricity bill in more than half.

Low loss equipment



Equipped with low loss drivers with less than 13% loss.



Contributes to the energy savings minimized in the total consumption.


Close

Intelligent Lighting

Presence detectors, Flow regulator and Advanced Telemanagement.

Presence detector



Reduce the light flow (60%) and consume (65%) when no activity is detected.

Flow regulation



Allows the control of the intensity of light in each luminaire.


Advanced Telemanagement



Allows the remote monitoring and management of the luminaire.

Close
ATP polymeric materials

ATP polymeric materials

Specially designed to satisfy the highest demands of resistance to external agents and to vandalism in public lighting and urban furniture.

Immune to corrosion

Immune to corrosion

Our lighting and outside furniture products are completely rust-proof since they are made out of raw materials which are invulnerable to corrosion.

Anti-electrocution products

Anti-electrocution products

Our products are completely safe since they are made with insulating materials which do not conduct electricity and prevent any danger of electrocution when making contact with the column or the luminaire.

IK10+: Beyond vandal-proof

IK10+: Beyond vandal-proof

Vandal-proof street lighting and urban furniture capable of withstandin impact tests beyond 50 joules, which is more than double that established by the international IK standard (IEC 62262).

IP66+: Totally hermetic

IP66+: Totally hermetic

Several devices ensure the sealing of the luminaire in any situation.

This high IP rate offers whole protection to all the internal elements of the street light.

100 % recyclable

100 % recyclable

Products made with 100 % recyclable, sustainable and ecologic materials.

Get to know the most ecological street lighting of the world.

10-year warranty

10-year warranty

The longest warranty in the sector.

Since 1969.

Effectiveness tested in tropical environments.

[...]
